10 Things to Do Before Hiring a Plastic Mold Maker Part 2

As we reviewed in Part 1 of this series of posts, hiring a plastic mold maker can be very complex and expensive. Having the right information before getting started will take a lot of stress out of the process. So, here are the final 5 essential things you should know or do before talking to your plastic mold maker. At the end we will review all 10

6. Does your plastic mold maker recommend a hot-runner or cold-runner system

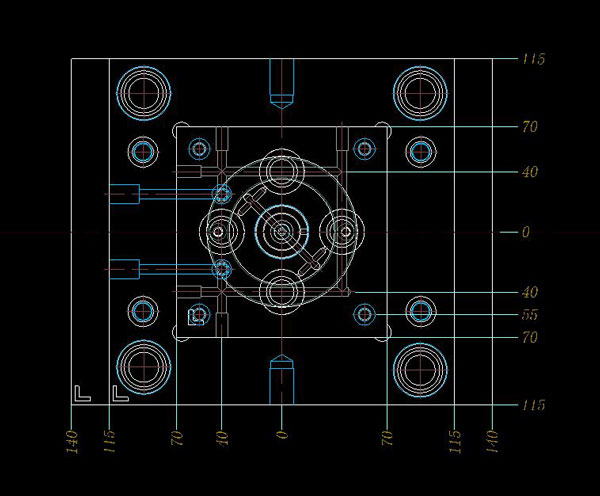

When parts are injection molded, the heated plastic is injected from the barrel through the sprue or initial opening in the mold and then passes through canals called runners, which lead to the cavities. When the sprue and runners are kept hot, waste is reduced and often the parts are aesthetically more appealing.

With a “sub-gated” cold-runner configuration, these channels are allowed to cool with the part. The runner waste is cut from the parts when ejected, by hand or by robot, and then recycled or discarded.

A hot-runner system may seem ideal, but the expense and maintenance of this system can make it cost prohibitive. Hot-runner systems, at times fail, which can result in expensive down-time and increased production costs.

The plastic mold maker should be able to advise you on which system is optimal for your project, so you can decide what best fits your situation.

7. Will your tool design require a secondary process—and will it add significantly to your cost of goods sold?

Building a tool is really the first manufacturing investment you’ll make, so you need to understand the ripple effects it may have further down the production line. Following are some common considerations related to tool design.

Semi-automatic or operated tools

Whenever possible, your parts and the molds for producing them should be designed to run automatically. Avoiding designs that require a human operator or robot will help keep your costs down. Not all parts can be produced with a robot, especially short-run products, as a robot takes time and skilled labor to set up.

In the United States, we have been spoiled over the years by inexpensive manual labor overseas. Rising labor costs at home and abroad, transportation costs, lead times, and the growing desire to make products locally are forcing product developers and engineers to focus on automation in domestic production.

Let’s say your factory costs are $50 an hour. You have an automated process and can produce 500 parts per hour with a 29-second cycle. Your total cost per part would be $0.10. Now, if you have a semi-automatic process and have to add a factory worker who makes $12 per hour to stop the machine after every cycle, your cycle time increases by 15 to 20 seconds. Your factory cost is now $62 an hour, but you’re producing only 293 parts per hour. Your price per part is now more than $0.21.

If your product has been smartly engineered, automation is possible and worth the added investment.

Post-production assembly

As with automation, a larger up-front investment in tooling will help you avoid complex secondary processes and save money on the final part cost.

Some assembly is simply unavoidable, but you can coordinate with your Plastic Mold Maker and Design for Manufacturing Engineer to set up an efficient process and have a clear vision of the path your parts will take to get from raw material to final packaged product. Assembly is also labor intensive and many times can double your costs. Sometimes you need to combine one assembly process with another to increase efficiency.

Some common secondary processes for injection- molded parts are:

– Sonic welding twot halves together
– Screwing two parts together.
– Snap fitting two parts together.
– Solvent welding two parts together (using a solvent to “glue” parts and then placing them in a jig so they bond correctly.
– Trimming runners that weren’t sub-gated or were improperly sub-gated
– Trimming “flash,” small, thin pieces of plastic on the edges, usually caused by a poor process, damaged or improperly built tool, or the use of a raw material in a tool not built for that material (such as PVC in standard steel)
– Adding a third-party part to the final assembly with the injection-molded parts

8. What is a family mold and can it work for you?

A family mold is a single tool that makes two or more types of parts. Many times these can be built with a turning sprue shut-off, which means one or more parts can be “turned off” so the operator can choose which parts get made.

There are advantages to this type of mold, one of which is being able to produce many different parts while investing in only one tool.

Some disadvantages are that family molds do not run as efficiently as individual molds and their size can impose cavity limitations. Since your family mold may be larger than an individual mold, you may be paying a higher price for the use of a larger machine while running only some of the parts that your tool can make.

Family molds are also limited by the difference in shape and size of the parts you want to make in them, but they can save you money and are worth considering any time you plan to produce several different parts. Be sure to ask your plastic mold maker about this option.

9. Do you need slides, hydraulics, or pneumatics?

Here are just a few more factors that can affect the cost of building a tool.

Slides

Slides allow a core to get in and out of the mold to create holes, windows, or spaces in more than one side of the final part. They are common but do require more engineering, moving parts, and a larger mold base.

Hydraulic or pneumatic assistance

One situation in which hydraulic assistance may be necessary is when you’re molding internal threads into a part, such as a cap or nut. A hydraulic cylinder is placed on top of the mold and is activated by the injection molding machine to unscrew the threaded metal cores before or after the mold opens and before the part is ejected.

Molds designed for pneumatic assistance are most common with parts that have a small lip that could cause the part to hang on or stick to the movable side of the mold. With pneumatic assistance, the part is ejected with a burst of high-pressure air that blows the part off of the ejector pin or core.

Pneumatic assistance can also be used on the cavity side to break the “vacuum” so the part will release and stay on the core side during mold opening.

10. Ensure quality with SPI and American standards

We at Aire Plastics ask our mold makers to follow the mold classification guidelines of the Society of the Plastics Industry, or SPI.

These guidelines cover the quality and quantity of cycles that a tool can run before major maintenance issues arise and specify the types of plastics that can be molded in a tool.  Following these specifications can help ensure the quality of your finished product.

When working with molders outside the United States, you need to specify that all components must meet American standards (DME or DME equivalent). Your plastic mold maker is accustomed to these standards which guarantee that the individual parts—such as ejector pins, sprue bushings, nuts, and bolts—can easily be replaced with off-the-shelf parts here in the United States.

Having to have custom-machine something as simple as an ejector pin, or having to order it from China, will cause expensive downtime for your mold. As Murphy’s Law would have it, this type of problem always occurs when you’re trying to meet a tight deadline. An ounce of prevention is worth a pound of production!



Ok. That was a lot of info, I know. So here is the rundown of the top 10 things you’ll do when building plastics tooling.

1. Know your material specs.

2. Get accurate production quantity estimates.

3. Determine whether you need a prototype or full production mold.

4. Be patient while waiting for a mold quote.

5. Remember that building tools takes time, two to six months.

6. Research hot-runner versus cold-runner systems.

7. Learn whether your tool design will lead to costly secondary processes down the production line.

8. Determine whether a family mold work for your project.

9. Find out if you need slides, unscrewing mechanisms, assisted ejection, or other

10. Insist on SPI-class molds and American standards.

You can see that a lot goes into building plastic tooling. If you learn the basics and carefully plan your final product before talking to your plastic mold maker and engineer, that conversation won’t be like sitting in a UN General Assembly meeting without a translator.

Since this will probably be the largest investment that you will have to make to manufacture your parts, making some smart and informed choices at this stage will lead to plastics manufacturing success.
